Vend une dreambox 7025+ Originale


HBM
 Share

Recommended Posts

Salut à tous

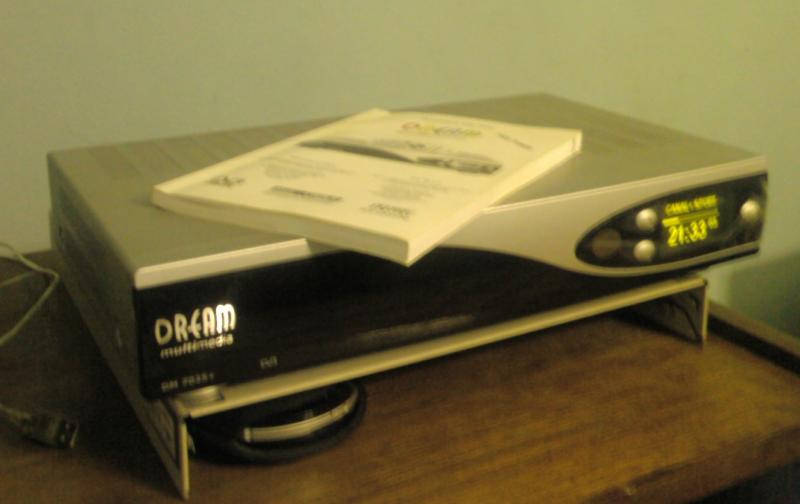

Je met en vente Ma Dreambox 7025+, Originale (acheté d'Allemagne en Aout 2008)

je la vend avec son disque dur 160 Go y a tout el jem3i family dessus

tous les accessoires qui vont avec

elle est toujours sous garantie jusqu'à Aout 2010



Inclus serveur CCcam avec 2 Clines pour 12 mois



Prix : 55.000 da Négociable



DM 7025+



Powerful receiver for digital TV and Radio programs..



Main features are a 300 MHz processor the dreambox DM 7025+ supports the Linux TV API



* 10/100MBit compatible Ethernet Interface

* Twin-Tuner DVB-S, DVB-C or DVB-T

* plug & play, mixable

* with a big size OLED display



Technical Features







* 300 MHz MIPS Processor

* Linux Operating System

* brilliant big-size OLED - Display

* MPEG-2 Hardware decoding, DVB-S

* TWIN Tuner, mixable, Plug&Play

* Tuner: DVB-S, DVB-C und DVB-T, pluggable

* 1 x DVB Common-Interface Slot

* 2 x Smartcard-Reader (Dreamcrypt CA)

* V.24/RS232 Interface

* Integrated Compact Flash Slot

* 10/100 MBit compatible Ethernet Interface

* analog modem

* 1 x USB

* S/PDIF Interface for digital bit stream out (AC-3)

* 2 x Scart-interfaces

* RF modulator

* Audio/Video cinch out

* 32 MByte Flash, 128 MByte RAM

* integrated IDE Interface

* Support for internal IDE HDD 3,5� in any capacity

* unlimited channel lists for TV/Radio

* channel-change time

* automatic service scan

* directly bouquet-lists

* EPG (electronic program guide)

* Videotext Decoder

* multiple LNB-Switching control (DiSEqC)

* OSD in many languages and skin-support





DreamBox DM7025+ technical data



DBS-Tuner:

Frequency Range 950 ... 2150 MHz

Signal Level - 65 dBm ... - 25 dBm

Signal-to-Noise Level 12 dB max.

DBS-Tuner Input Connector F-Type female

Input Impedance 75 Ohm

AFC +/- 3 MHz

Demodulation Shaped QPSK

FEC Viterbi and Reed-Solomon

Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8

Roll-off Factor 35 %

Demultiplexing according ISO 13818-1

Common-Interface:

Common-Interface Power Consumption max. 0,3A/5V

Video decoder:

Video Compression MPEG-2 and MPEG-1 compatible

Video Standard PAL G/ 25 Hz, NTSC

Video Formats 4:3 / 16:9

Letterbox for 4:3 TV-Device



Audio decoder:

Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3

Audio Mode Dual (main/sub), Stereo

Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz

Output analog:

Output Level L/R 0,5 Vss on 600 Ohm

THD > 60 dB (1 kHz)

Crosstalk

Output digital:

Output Level 0,5 Vss on 75 Ohm

Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz

S/PDIF-Output optical (AC3)

Video parameter:

Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm

Teletext filter in conformity with ETS 300 472 Standard

TV-Scart:

Output: FBAS, RGB, S-Video

VCR-Scart:

FBAS

Serielle Interface RS 232:

Typ RS232 bidirectional

Bitrate 115,2 kBit/s max.

Plug Connector SUB-D-9

Function: Update of Firmware

Ethernet:

10/100 MBit compatible interface

Function: Update of Firmware

USB:

USB 1.1 connector

UDMA100 IDE Interface:

for internal HDD

Compact Flash - Reader

LNB power and polarisation per tuner:

LNB Current 500mA max.; short-circuit-protected

LNB Voltage vertical 11,5V at 400mA

LNB Voltage horizontal 17,3V at 400mA

Count of active satellite position:

DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION

DiSEqC - Rotor Control

Power consumption:

Input voltage:

230V / 50 Hz alternating current +/- 15%

110V / 60 Hz alternating current +/- 15%

Physical specification:

Ambient Temperature +15°C...+35°C

Humidity

Size (W x D x H): 374 mm x 230 mm x 75 mm

Weight: 1,8 kg without HDD


Edited by HBM
