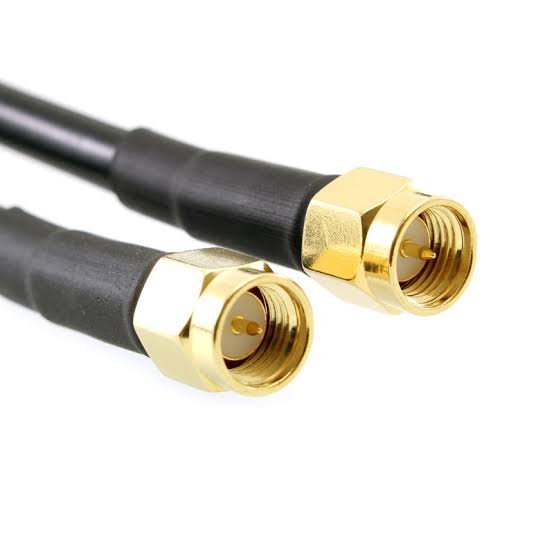

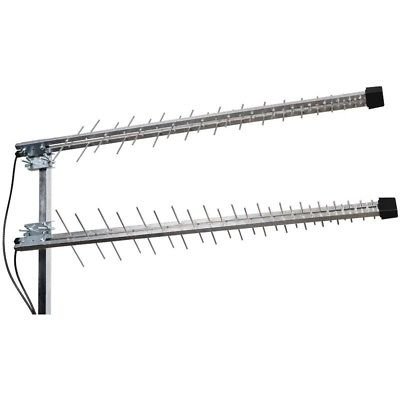

boubazm Posted May 19, 2020 Share Posted May 19, 2020 Antenne 3g /4G /5g et wifi Prix 21000 DA Description Frequency ranges: LTE 700 & 800: 698-862MHz / 9.5 dBi LTE 1800: 1710-1880MHz / 11 dBi LTE 2600: 2500-2700MHz / 11 dBi 3G 900: 880-960MHz / 10 dBi 3G 2100: 1920-2170MHz / 11 dBi Wi-Fi (WLAN): 2401-2495MHz / 11 dBi Features: Antenna Gain: 9–11 dBi Cable length: 10 m Connector: SMA male Impedance: 50 oHm Max. power connection: 50 W Antenna length: 1070 mm Number of elements: 58 Polarization: 2 × 45 degrees Front-back ratio: 23 dB Beam width H/V: 54/46° VSWR: Détails & caractéristiques For: LTE 700+800 (4G) / GSM 900 / DCS-LTE 1800 / UMTS (3G) / WI-FI (WLAN) / LTE 2,6 GHz Frequency: 696 ~ 2700 MHz Antenna Gain: 9–11 dBi 2x Integrated Cables 10m with SMA Male Connectors Informations sur le produit Marque Iskra Référence constructeur P-58-L700-10 Item Dimensions L x W x H 112 x 8 x 27 centimètres Quote Link to comment Share on other sites More sharing options...
